Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
158862015DoosanPuma-480 XLFanuc 32iA

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide35.4" / 28.34"
 Maximum Turning Diameter Chucking / Shaft35.4" / 25.54"
 Distance Between Centers / Maximum Turning Length84.3" / 120.7"
Spindle:Spindle Speeds Minimum - Maximum15 - 1,500 RPM
 Spindle Bore / Bar Capacity / Nose7.12" / 6.5" / A2-15
 Main Motor (30 min / continuous)60 / 50 HP
Turret:Number of Positions10 Stations
Travels:X-Axis Travel14.25"
 Z-Axis Travel123.5"
Tailstock:Stroke of Body / Quill109.4" / 4.7"
 Quill Diameter / Taper4.7" / MT # 5
Rapids:Rapid Traverse (X / Z )710 / 550 IPM
Dimensions:Floor Space (L x W x H)260" x 94" x 78"
 Weight (approx.)47,000 Lbs

 Equipped With

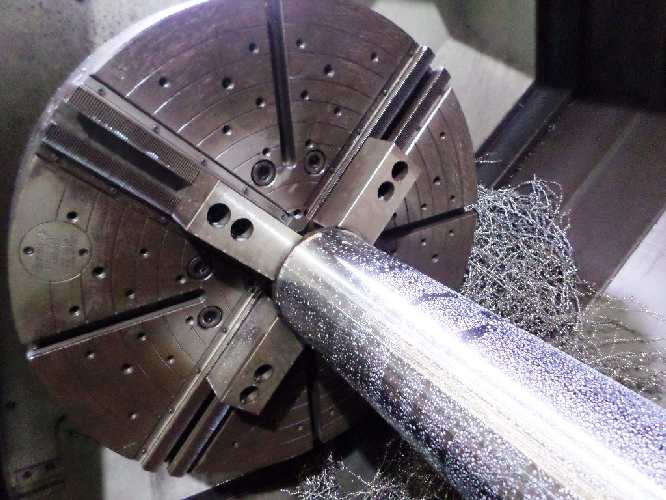

Additional Info.:21" 3-Jaw Hydraulic Chuck (never used)
 Chip Conveyor

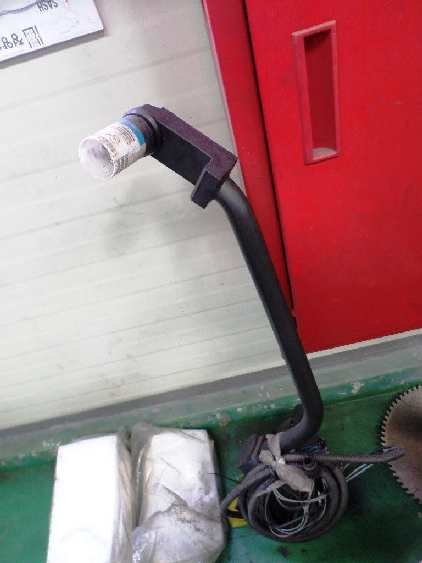

 Tool Setter (never used)

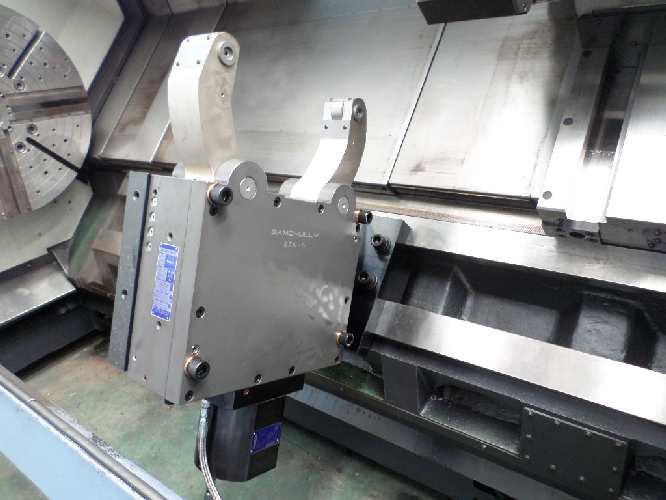

 Hydraulic Steady Rest (1.77" - 12.2")
 34" 4-Jaw Hydraulic Chuck
 Two (2) Speed Geared Head

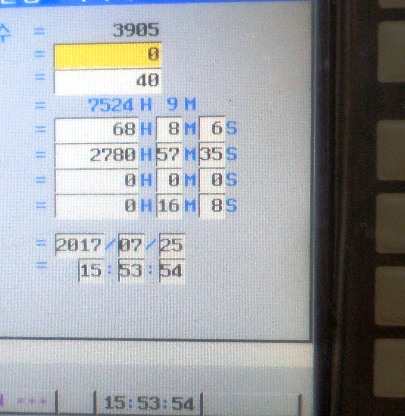

Note:Very Low Hours

Click Here To Print Quote - 15886

Click Here To Email Quote Request - 15886

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.


ManufacturerModelMachine IDMachine Photos

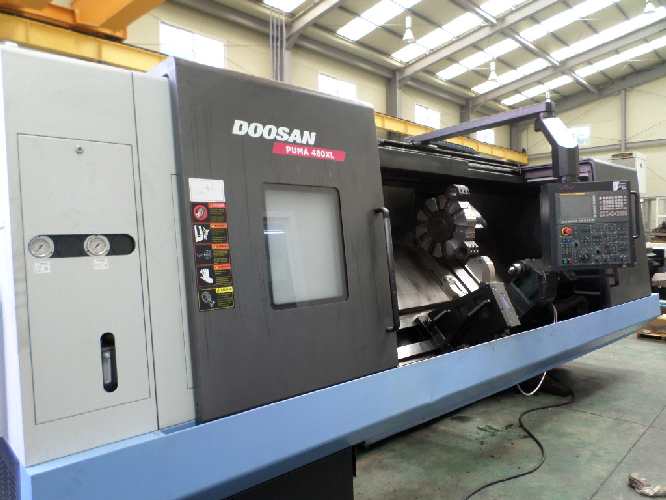

DoosanPuma-480 XL15886 Puma-480 XL.jpg
DoosanPuma-480 XL15886 Puma-480 XL 1.jpg

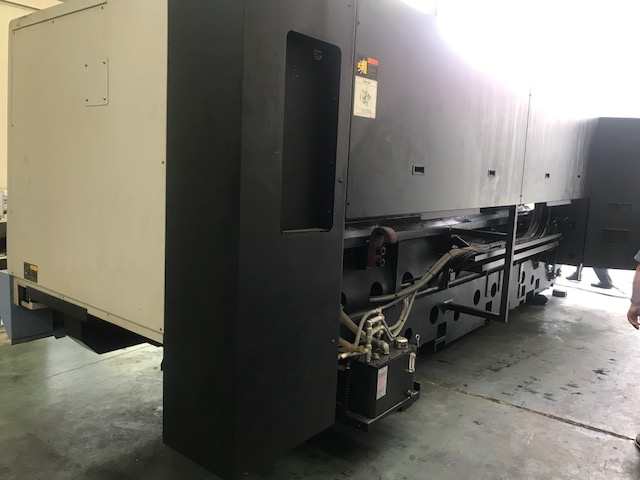

DoosanPuma-480 XL15886 Puma-480 XL 2.jpg

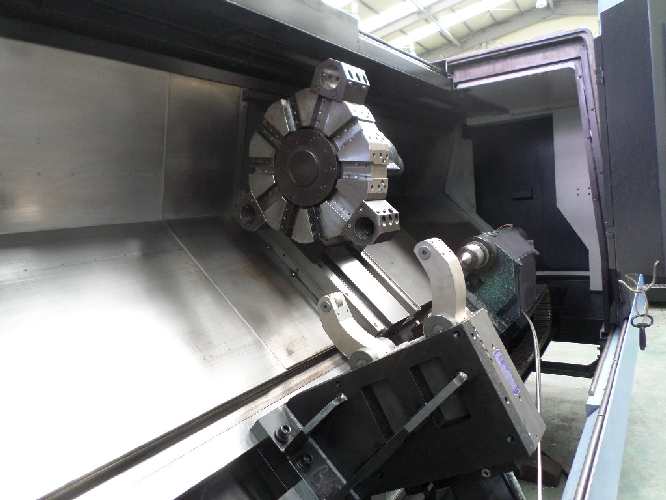

DoosanPuma-480 XL15886 Puma-480 XL 3.jpg

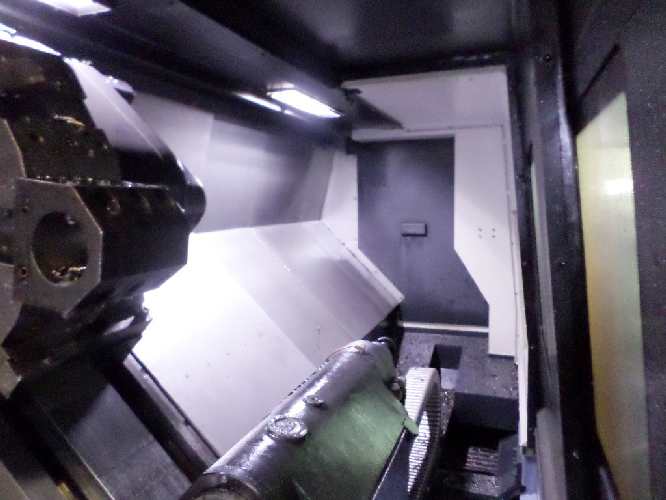

DoosanPuma-480 XL15886 Puma-480 XL 4.jpg
DoosanPuma-480 XL15886 Puma-480 XL 5.jpg

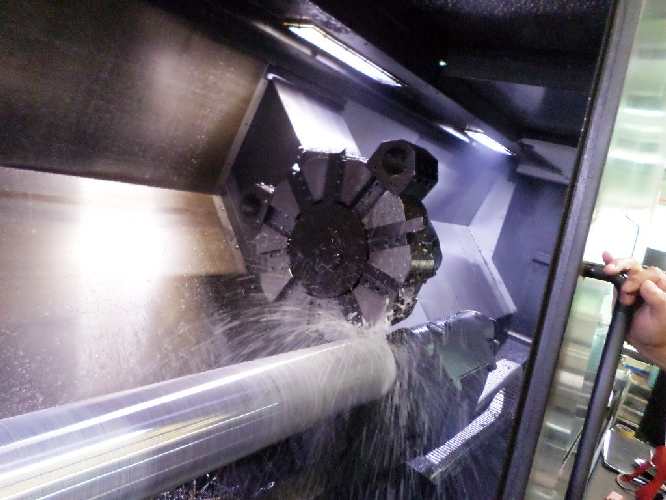

DoosanPuma-480 XL15886 Puma-480 XL 6.jpg
DoosanPuma-480 XL15886 Puma-480 XL 7.jpg
DoosanPuma-480 XL15886 Puma-480 XL 8.jpg
