Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
159892012DoosanPuma-2600 YFanuc i

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle30.7" / 26.8"
 Maximum Turning Diameter Main / Sub / Distance Between24.8" / 17" / 30.4"
 Maximum Turning Diameter Length29.9"
Spindle:Speeds28 - 2,800 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.38" / 3.03" / A2-8
 Motor (30 min. / cont.)30 / 25 HP
Turrets:Number of Positions12 Stations (24 pos.)
Travels:X-Axis Travel10.23"
 Z-Axis Travel32.67"
 Y-Axis Travel4.13"
 C-Indexing360,000°
Rotary Tools:Rotary Tool Speed5,000 RPM
 Rotary Tool Motor7.5 HP
Tailstock:Stroke of Body / Quill48" / 3.94"
 Quill Diameter / Taper3.94" / MT #5
Rapids:Rapid Traverse (X & Z / Y)1,181 / 394 IPM
 Sub Spindle Rapid Traverse787 IPM
Dimensions:Floor Space (L x W x H)142" x 77" x 85"
 Weight (approx)15,000 Lbs

 Equipped With

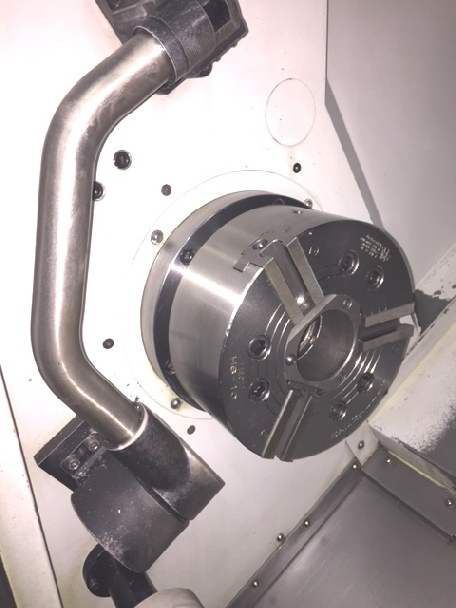

Additional Info.:10" 3-Jaw Hydraulic Chuck
 USB Port
 Automatic Tool Presetter
 Rigid Tapping
 Tailstock
 Parts Catcher
 Chip Conveyor
 PCMCIA Port
Note:Low Hours


Click Here To Print Quote - 15989

Click Here To Email Quote Request - 15989

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

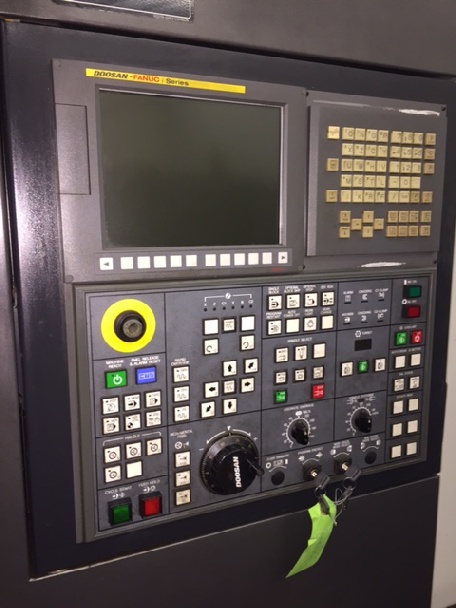

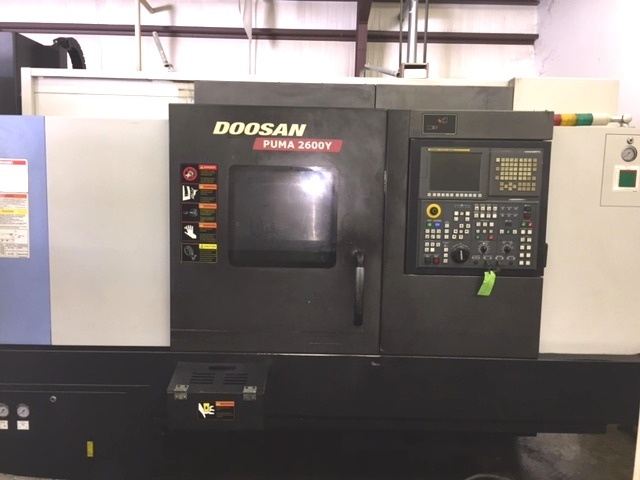

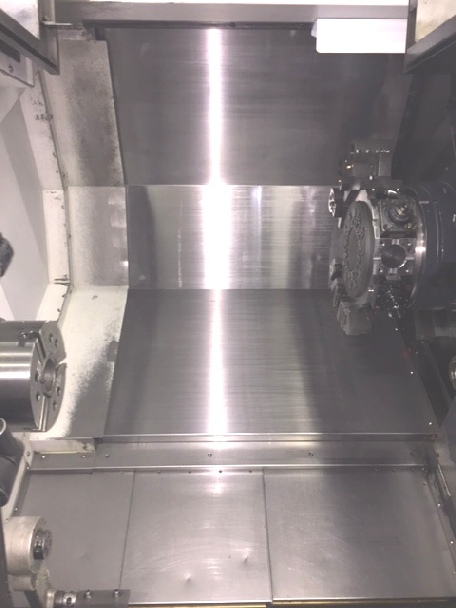

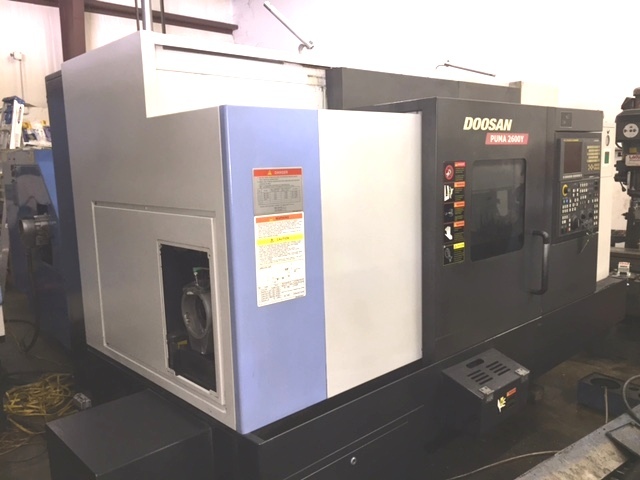

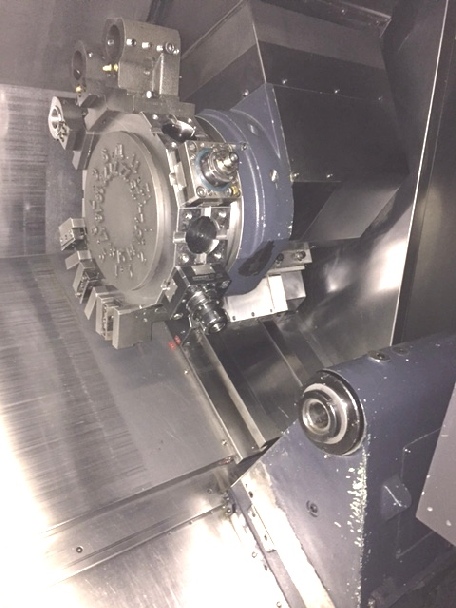

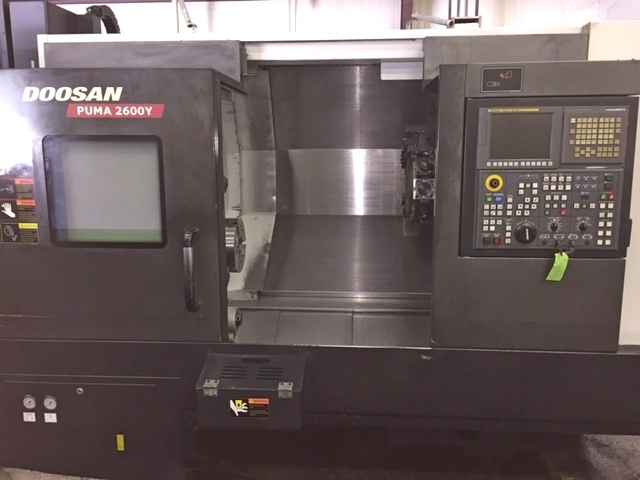

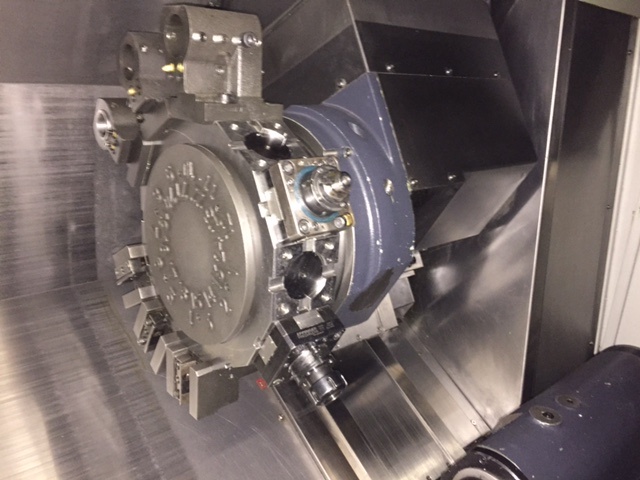

DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y.jpg
DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y 1.jpg
DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y 2.jpg
DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y 3.jpg
DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y 4.jpg
DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y 5.jpg
DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y 6.jpg
DoosanPuma-2600 Y15989http://www.machinetools247.com/images/machines/15989-Doosan Puma-2600 Y 7.jpg
