Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
161062006DaewooLynx-220 AFanuc I

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide20.08" / 11.42"
 Maximum Turning Diameter / Maximum Turning Length12.6" / 12.7"
Spindle:Spindle Speeds Minimum - Maximum60 - 6,000 RPM
 Spindle Bore / Bar Capacity / Nose2.10" / 1.75" / A2-5
 Main Motor (30 min / continuous)20 / 15 HP
Turret:Number of Positions / Indexing Time (on station)12 Stations / .15 Sec.
Travels:X-Axis Travel6.9"
 Z-Axis Travel13"
Rapids:Rapid Traverse (X / Z )790 / 945 IPM
Dimensions:Floor Space (L x W x H)95" x 65" x 65"
 Weight (approx.)7,000 Lbs

 Equipped With
Additional Info.:6" 3-Jaw Hydraulic Chuck
 Chip Conveyor
 Parts Catcher
 Tool Setter
 Royal 3J Collet Chuck


Click Here To Print Quote - 16106

Click Here To Email Quote Request - 16106

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

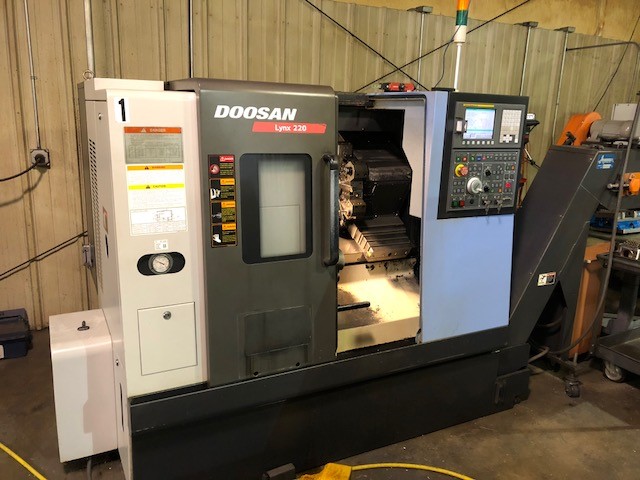

DaewooLynx-220 A16106http://www.machinetools247.com/images/machines/16106-Daewoo Lynx-220 A.jpg

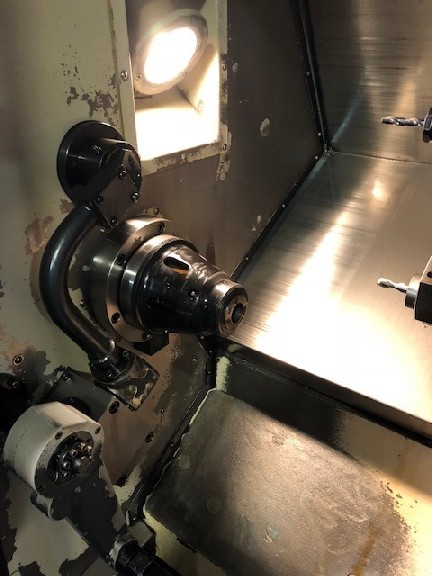

DaewooLynx-220 A16106http://www.machinetools247.com/images/machines/16106-Daewoo Lynx-220 A 1.jpg

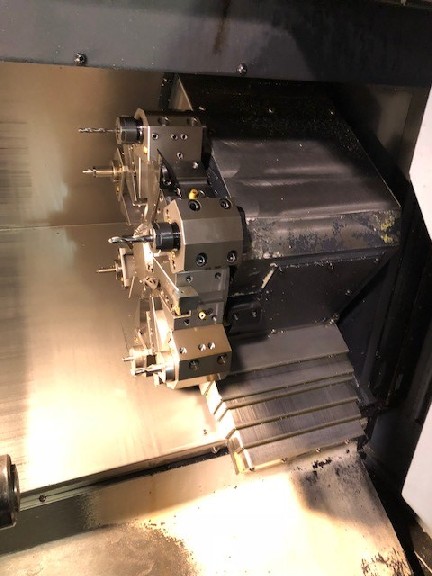

DaewooLynx-220 A16106http://www.machinetools247.com/images/machines/16106-Daewoo Lynx-220 A 2.jpg

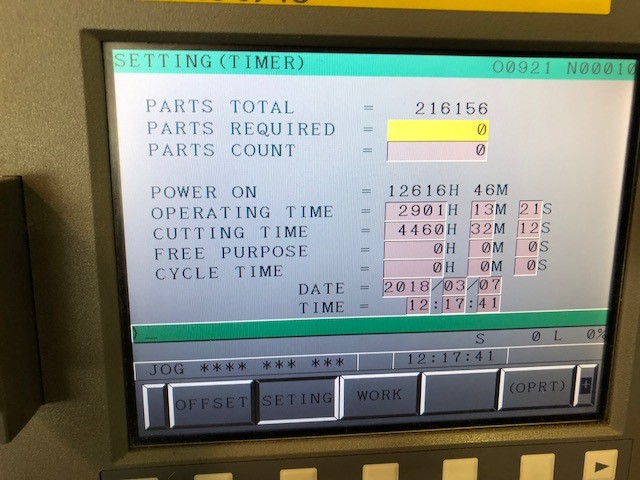

DaewooLynx-220 A16106http://www.machinetools247.com/images/machines/16106-Daewoo Lynx-220 A 3.jpg

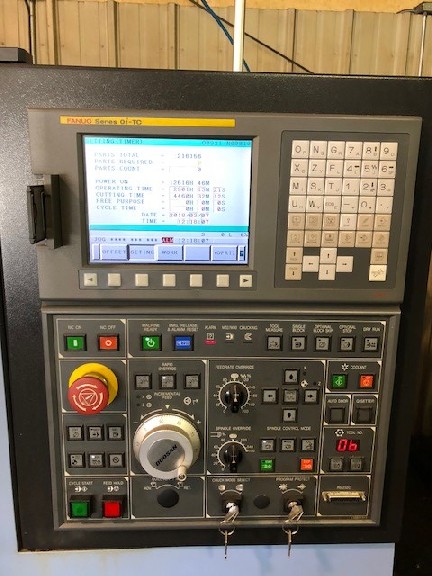

DaewooLynx-220 A16106http://www.machinetools247.com/images/machines/16106-Daewoo Lynx-220 A 4.jpg
