Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl

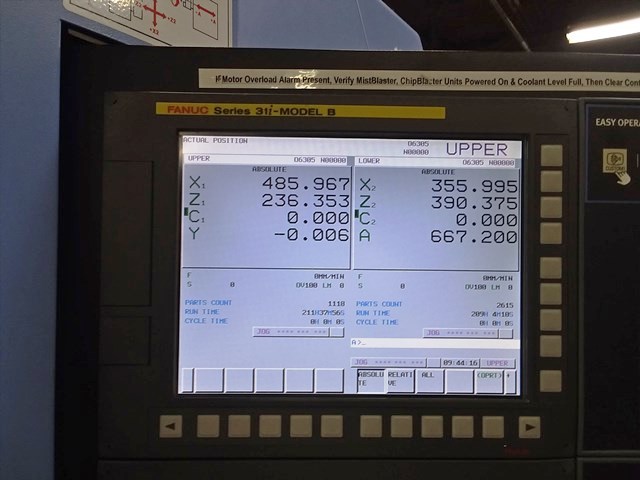

162202017DaewooPuma-TT-2500 SYFanuc 31iB

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide31.5" / 24.4"
 Maximum Cutting Diameter (turret one / turret two)15.35" / 11.81"
 Maximum Turning Length29.13"
Main Spindle:Speeds35 - 3,500 RPM
 Spindle Bore / Bar Capacity / Spindle Nose3.5" / 3" / A2-8
 Main Motor (30 min / continuous)25 / 20 HP
Sub-Spindle:Speeds35 - 3,500 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.5" / 3" / A2-8
 Motor (30 min. / cont.)25 / 20 HP
Turrets:Number of Positions (turret one / turret two) All Live12 / 12 Tools Each
Travels:X-Axis Travel (turret one / turret two)10.04" / 7.48"
 Z-Axis Travel (turret one / turret two)31.5" / 35.43"
 Y-Axis Travel+/- 2.35"
 B-Axis Travel (sub-spindle)31.9"
Rotary Tools:Rotary Tool Speed50 - 4,000 RPM
 Rotary Tool Motor (turret one / turret two)7.5 / 5 HP
Rapids:Rapid Traverse (X / Z / Y)790 / 945 IPM
 Sub Spindle Rapid Traverse943 IPM
Dimensions:Floor Space (L x W x H)165" x 88" x 105"
 Weight (approx)28,000 Lbs

 Equipped With

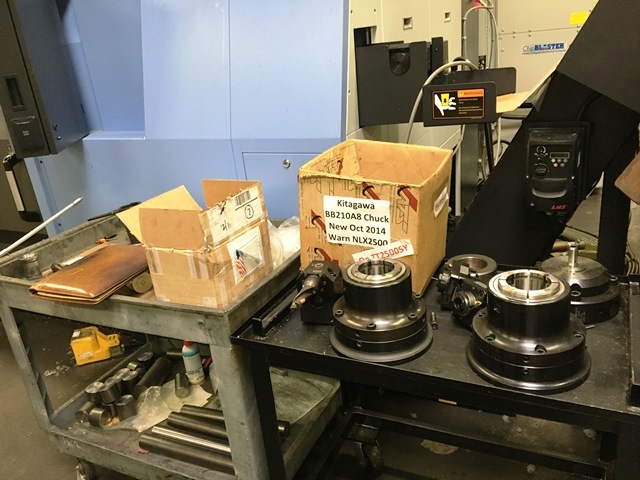

Additional Info.:10" 3-Jaw Hydraulic Chuck Main & Sub
 Tool Presetter
 Chip Conveyor
 Rigid Tapping (main, sub and rotary tools)

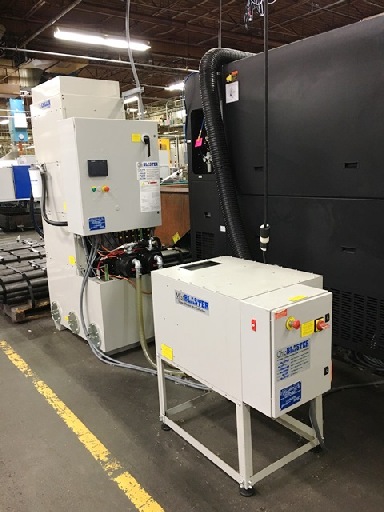

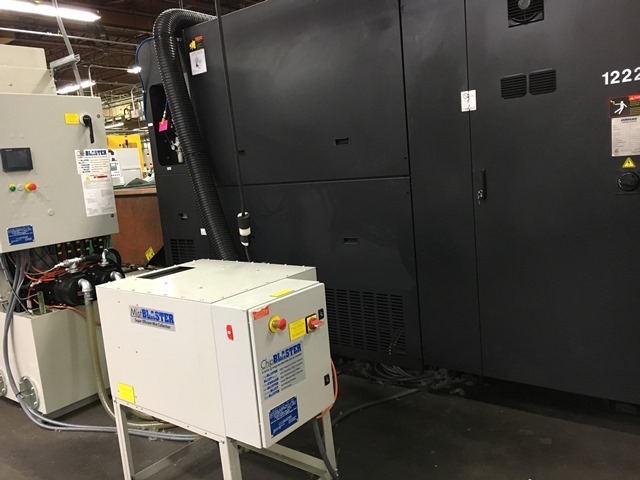

 ChipBlaster High Pressure Coolant - 1,000 PSI
 ChipBlaster Mist Collector

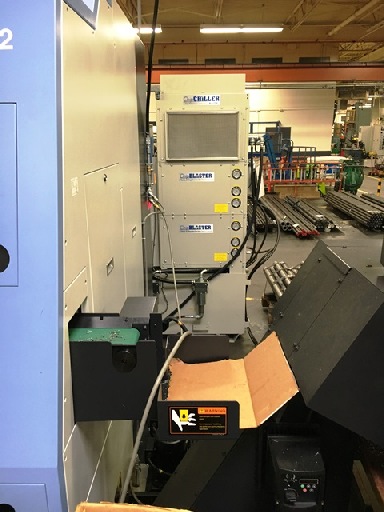

 ChipBlaster Chiller
 Two (2) ATS 30 Dead Length Collets
Note:2015 Machine, Installed New in 2017


Click Here To Print Quote - 16220

Click Here To Email Quote Request - 16220

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

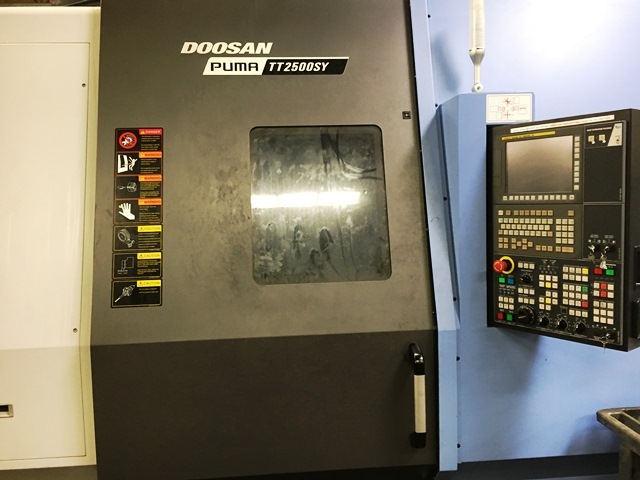

DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY.jpg
DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY 1.jpg
DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY 2.jpg
DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY 4.jpg
DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY 5.jpg
DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY 6.jpg
DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY 7.jpg
DaewooPuma-TT-2500 SY16220http://www.machinetools247.com/images/machines/16220-Doosan Puma-TT-2500 SY 8.jpg
